MyDepot product guide

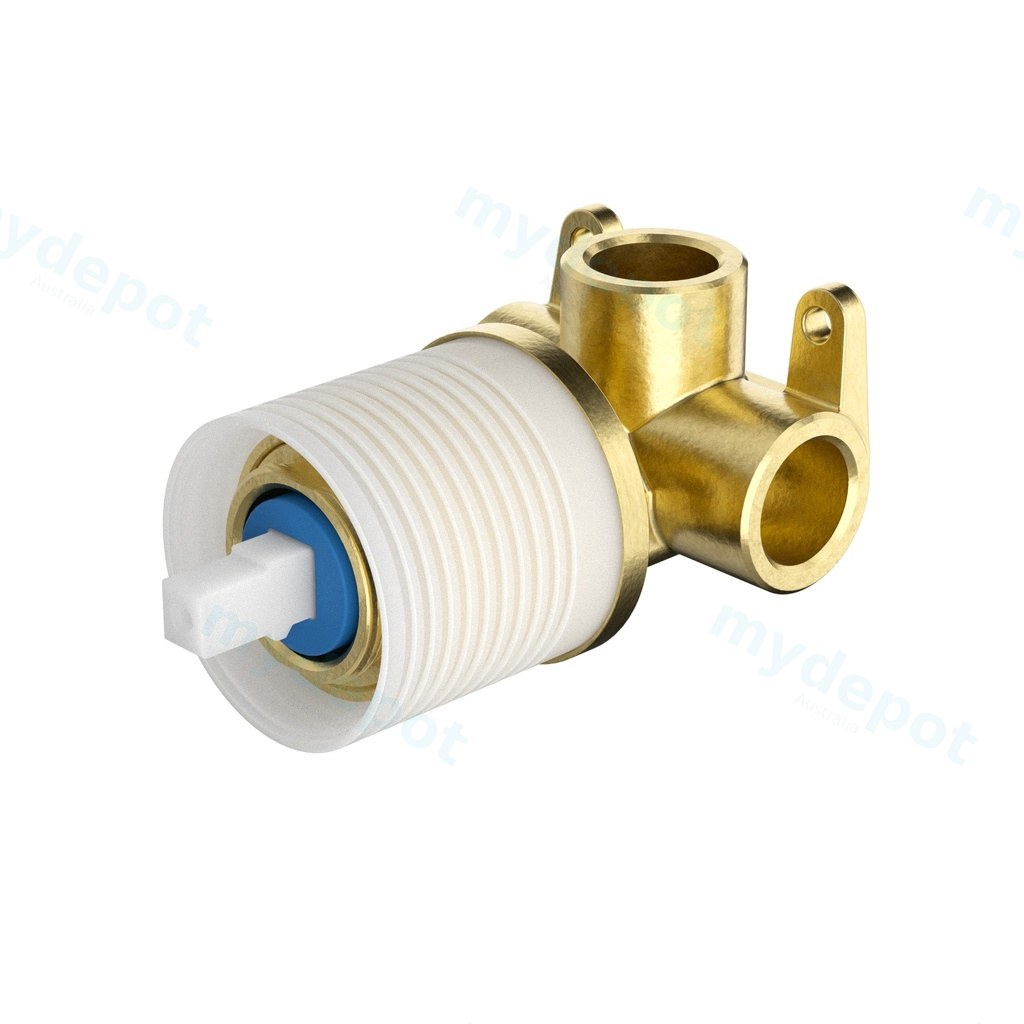

Linie wall mixer rough-in body for concealed wall mixer installations.
A wall mixer rough-in body for concealed installation, designed to work with the ikon Linie wall mixer trim kit. Brass construction with a 35mm Kerox cartridge, rated 150-500 kPa and 1 to 70 degrees Celsius.
What is included
| Included | Wall mixer rough-in body only. |
|---|---|
| Not included | Wall mixer trim kit, tapware, waste and installation parts are not included. |
| Best for | Concealed wall mixer rough-in in new or renovation bathroom installations. |
Measure before you buy
- Confirm the rough-in body position matches the trim kit requirements.
- Check wall cavity or wall thickness for concealed body installation.
- Verify water inlet position and pipe alignment.
- Allow adequate access for future maintenance of the cartridge.
- Confirm trim kit will cover the wall opening after installation.
Complete specifications
| Product type | Wall Mixer Body |
|---|---|
| SKU | 44652 |
| Code | 44652 |

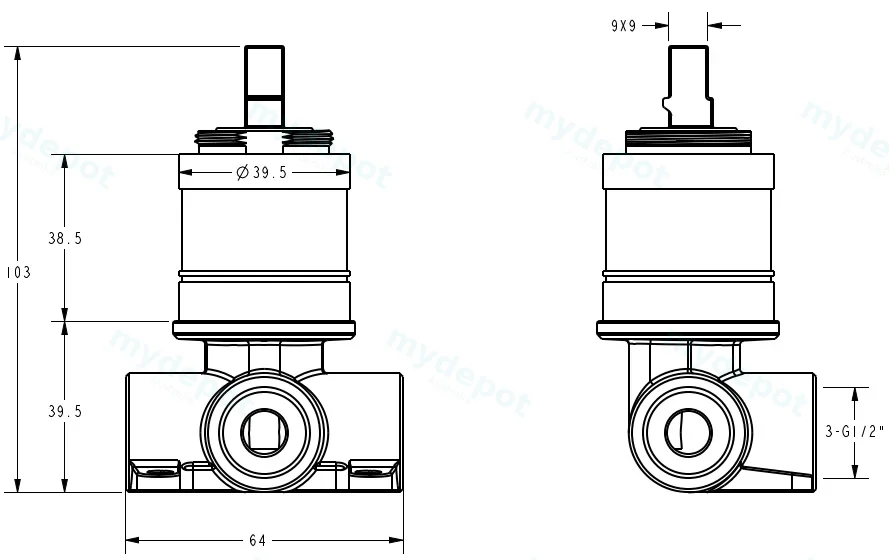

| Size | 64 x 64 x 103mm |
| Material | Brass |
| Colour / finish | Chrome |
| Mounting | Wall Mounted |
| Barcode | 44652 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Flush the water lines before installing the body to clear debris.
- Do not use harsh chemicals on the brass construction.
- Avoid abrasive cleaning materials during installation.
- Keep the body capped and protected until the trim kit is fitted.
- Use thread seal tape or appropriate plumber's sealant on threaded connections.
FAQ
Is the wall mixer trim kit included?
No. The rough-in body and trim kit are sold separately. The ikon Linie wall mixer trim kit must be purchased and fitted after the body is installed.
What water pressure range does this body support?
The body is rated for a working pressure of 150-500 kPa and operating temperatures of 1 degree Celsius to 70 degrees Celsius.
Can this body be installed behind any wall mixer trim kit?
This body is designed for ikon Linie wall mixer installations. Confirm compatibility with your chosen trim kit before purchasing.
Specifications
| Color | Chrome |
