MyDepot product guide
A tile insert floor grate for custom-length bathroom floor drains.

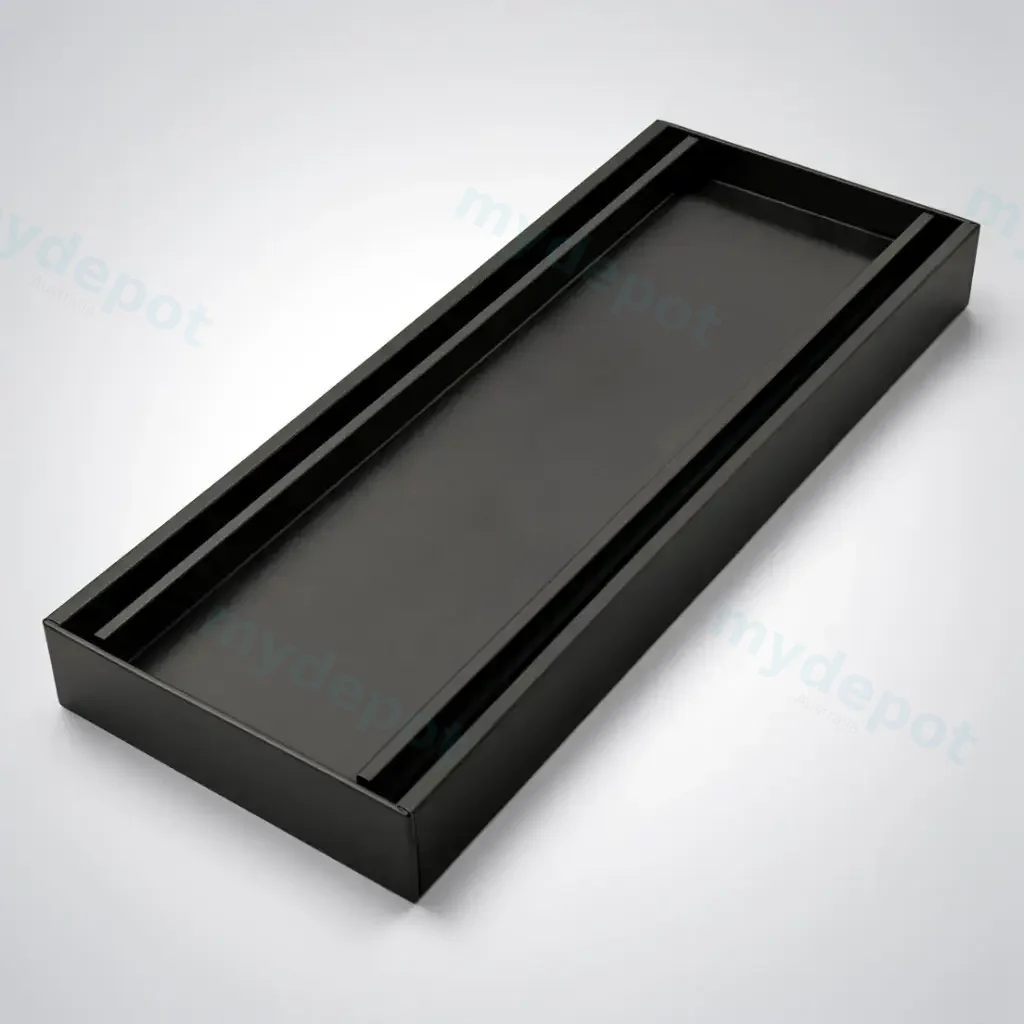

A Lauxes aluminium slimline tile insert floor grate in matte black. Adjustable length from 300 to 5600mm with a 100mm width.
What is included
| Included | Floor grate unit only. |
|---|---|
| Not included | Waste outlet, end caps, cutting tools and installation parts are not included unless stated separately. |
| Best for | Indoor bathroom or laundry floor drains where a flush-fit tile insert grate is preferred. |
Measure before you buy
- Measure the total drain length and cut the bottom tray 3mm shorter than the desired length to allow end caps to fit.
- Cut the top grate 1mm shorter than the bottom tray for easy roll-in of the grate system.
- Confirm width clearance of 100mm across the installation area.
- Account for the 26mm height when planning floor levels.
- Drill the waste outlet hole using a bimetal hole saw.
Complete specifications
| Product type | Tile insert floor grate |
|---|---|
| SKU | 41441 |
| Code | 41441 |

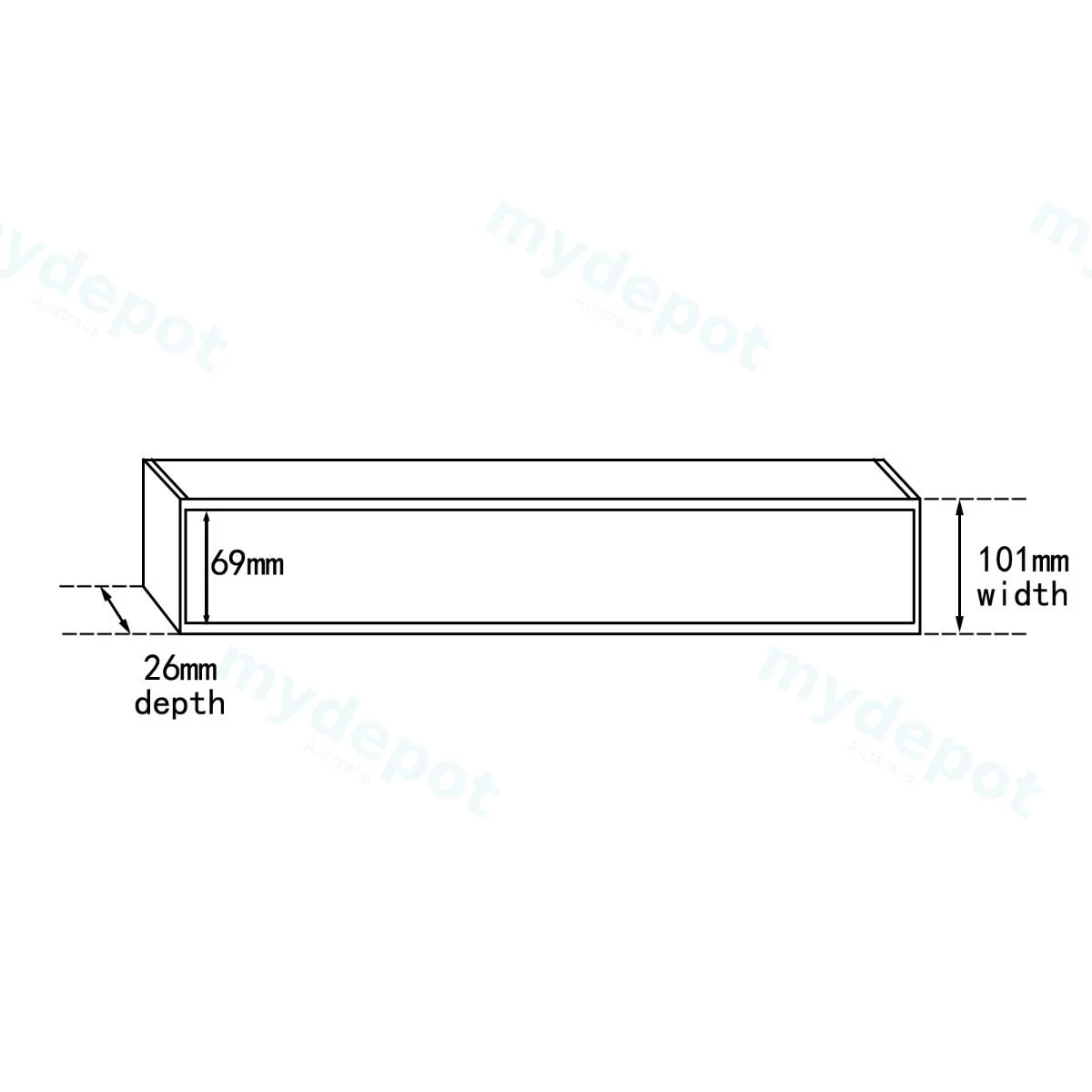

| Size | 300-5600 x 100 x 26mm |
| Material | Aluminium |
| Colour / finish | Matte Black |
| Barcode | 41441 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Remove the top grate regularly and clean the waste channel underneath.
- Rinse the grate with warm water to prevent soap scum buildup.
- Avoid abrasive cleaners that may damage the matte black finish.
- Do not use acidic cleaning agents on aluminium surfaces.
- Reassemble with the grate properly seated in the bottom tray.
FAQ
Can I cut this grate to a custom length?
Yes. Use a compound mitre saw with a multi-material blade (80 tooth or more). Cut the bottom tray 3mm shorter than the desired length, then cut the top grate 1mm shorter than the tray.
What waste outlet sizes does this grate suit?
The grate accommodates 40, 50, 72 and 80mm waste outlets. The waste can be positioned anywhere along the bottom tray.
Are end caps included?
End caps are not listed as included. Confirm with the seller before purchase if end caps are required for your installation.
Specifications
| Color | Matte Black |
