MyDepot product guide
A cut-to-size aluminium floor grate drain for indoor and outdoor use.

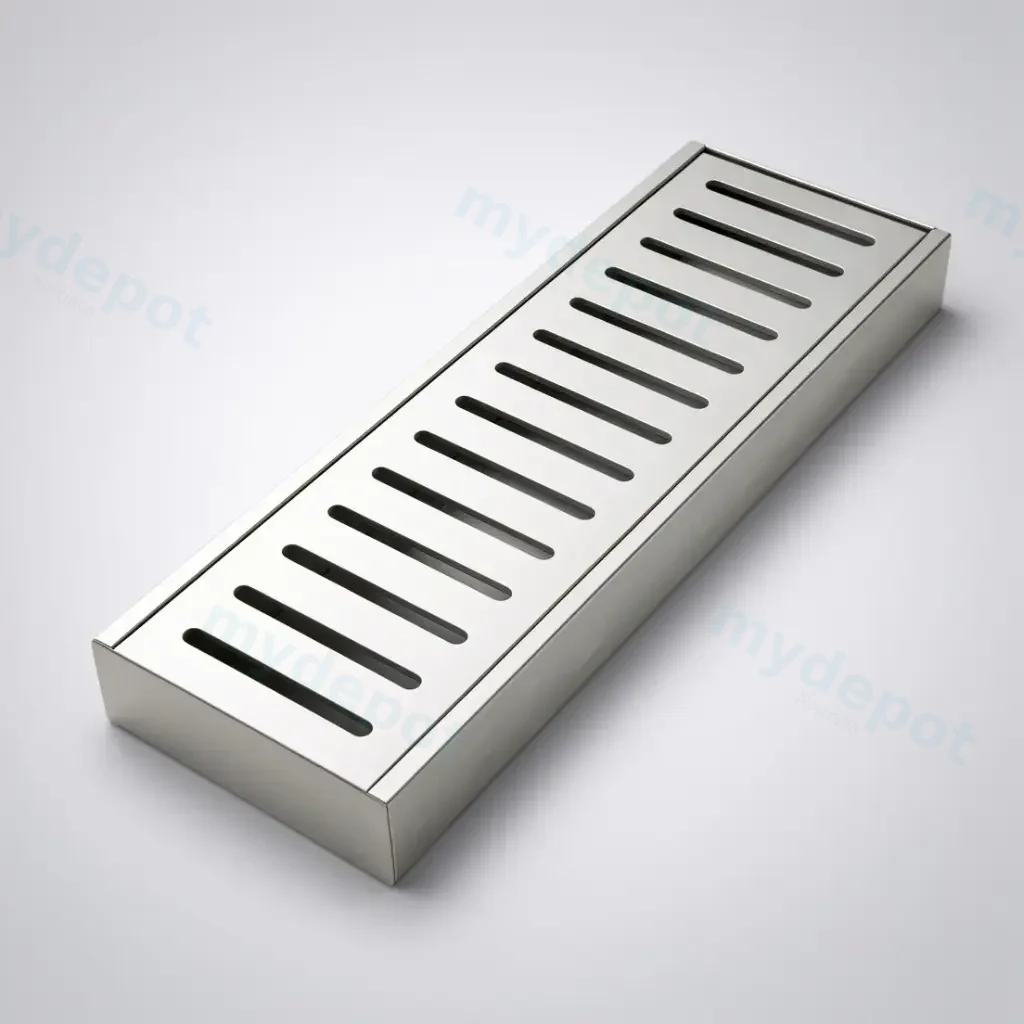

A Lauxes aluminium floor grate drain in silver chrome finish. Available in lengths from 300mm to 5600mm and suitable for both indoor and outdoor applications.
What is included
| Included | Floor grate drain unit. |
|---|---|
| Not included | Waste outlet, end caps, and plumbing fittings are not included. |
| Best for | Indoor and outdoor wet areas needing a discreet linear floor drain with adjustable length. |
Measure before you buy
- Length is adjustable from 300mm to 5600mm.
- Cut the bottom tray 3mm shorter than the desired length to allow end caps to fit.
- Cut the top grate 1mm shorter than the bottom tray for easy roll-in.

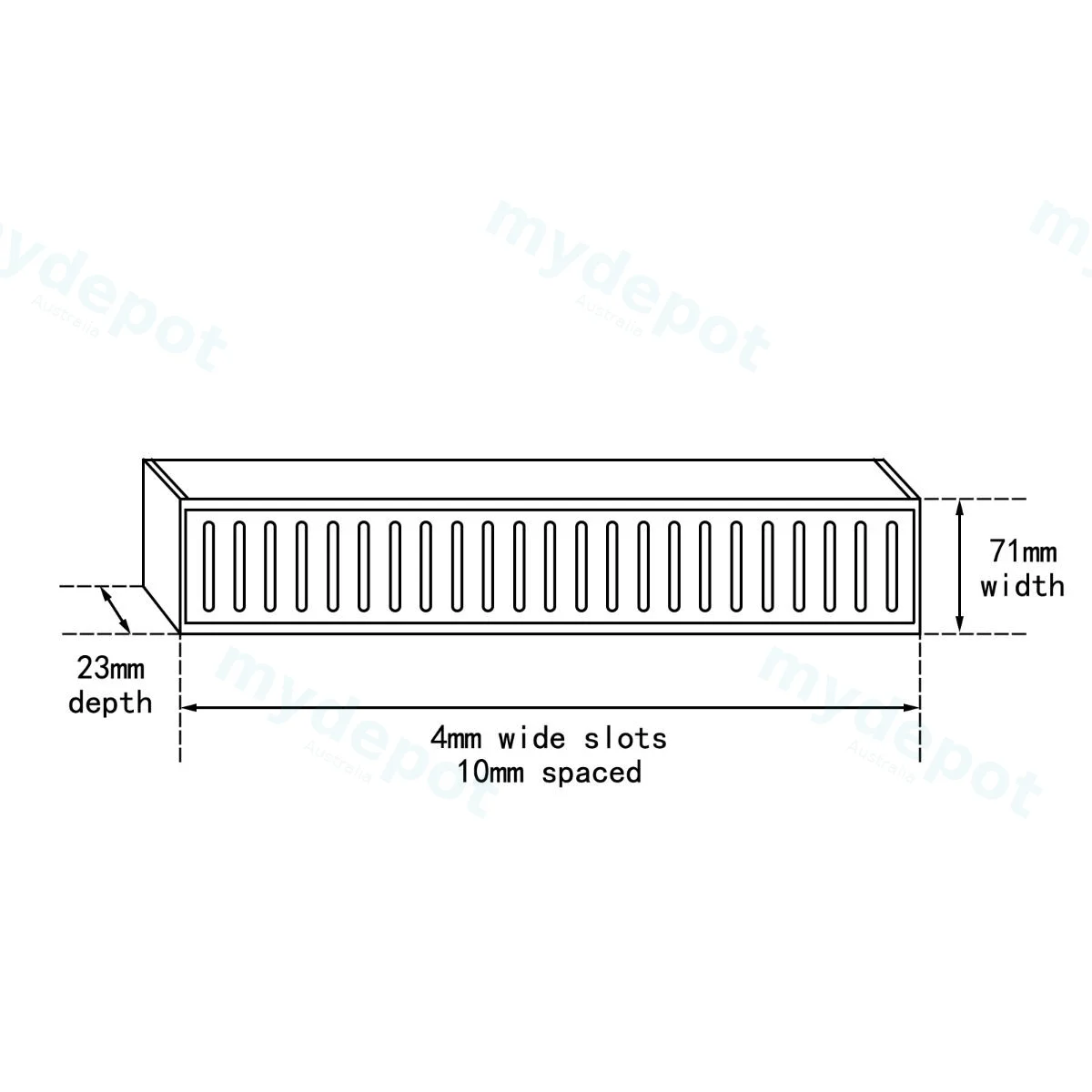

- The grate width is 70mm and height is 23mm.
Complete specifications
| Product type | Floor Grate Drain |
|---|---|
| SKU | 41423 |
| Code | 41423 |
| Size | 300-5600mm L x 70mm W x 23mm H |
| Material | Aluminium |
| Colour / finish | Silver Chrome |
| Barcode | 41423 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Remove the top grate regularly and rinse.
- Use a soft brush to clean the bottom tray channel.
- Avoid harsh chemicals that may affect the finish.
FAQ
What waste size does this drain suit?
The drain is designed for 40mm or 50mm waste outlets. Select a matching waste outlet separately.
Can I cut the drain to a specific length?
Yes, the grate can be cut to any length between 300mm and 5600mm. Use a compound mitre saw with a multi-material blade of 80 teeth or more. Cut the bottom tray 3mm shorter than the desired length for end caps to fit.
