A square brass chrome floor waste for tiled bathroom floors.

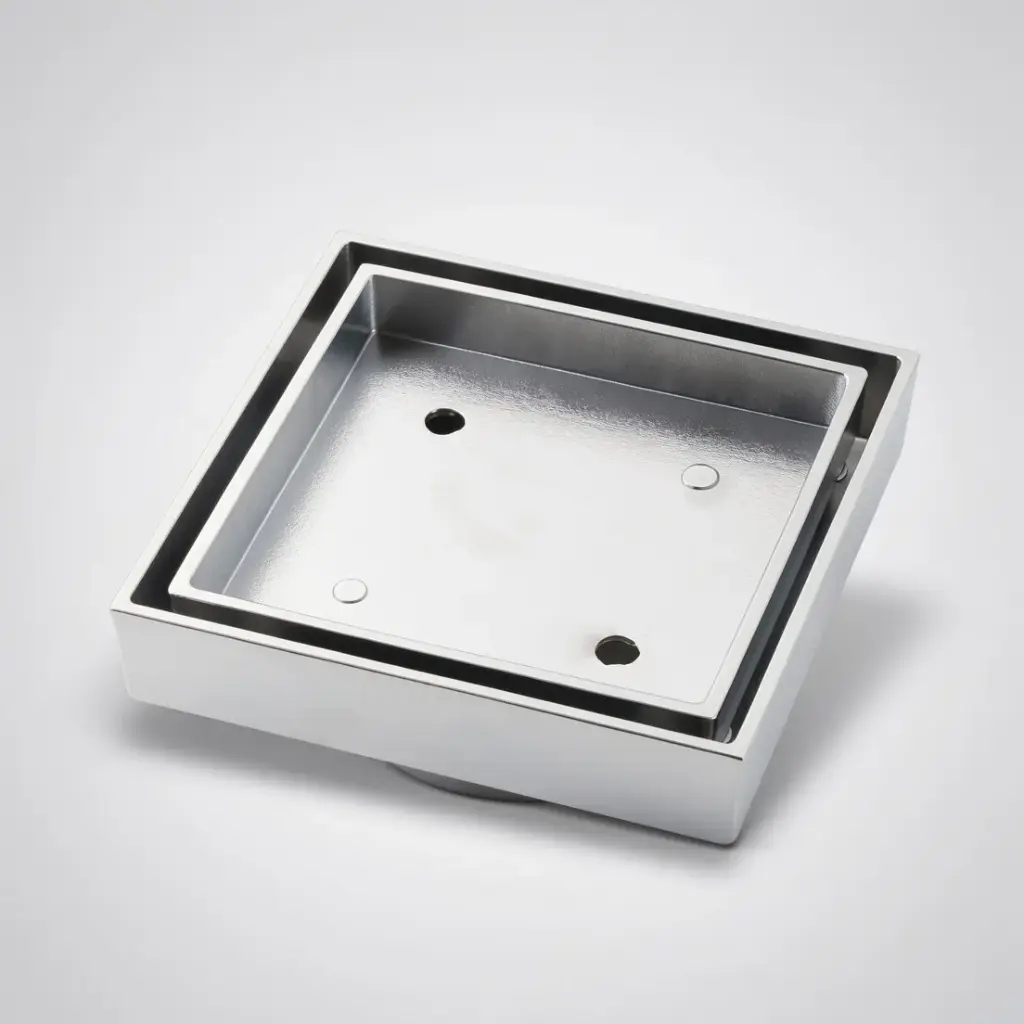

A square tile insert floor waste in solid brass with a polished chrome finish. The 115mm x 115mm grate sits flush with tiled flooring and has a 100mm outlet.
What is included
| Included | Floor waste grate unit only. |
|---|---|
| Not included | Tile cutting tools, sealant and installation parts are not included unless stated separately. |
| Best for | Tiled bathroom or wet area floors where a square chrome floor waste that sits flush with the tile is desired. |
Measure before you buy
- Check the tile cut-out dimensions match the 115mm x 115mm grate size before tiling.
- Confirm the 100mm outlet fits the existing bathroom floor waste pipe.
- Verify the floor depth allows for the 35mm grate height.
- Confirm the tile surface is prepared level before installing the grate.
Complete specifications
| Product type | Tile Insert Floor Waste |
|---|---|
| SKU | 70051 |
| Code | GD115.CH |
| Size | 115mm x 115mm x 35mm |
| Material | Solid Brass |
| Colour / finish | Polished Chrome |
| Barcode | 70051 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Lift the grate out regularly to clear debris from the outlet.
- Clean with a mild cleaner suitable for chrome surfaces.
- Avoid acidic or abrasive cleaners on the polished chrome finish.
- Check the grate removal mechanism is working before and after installation.
FAQ
Does this floor waste need a specific tile cut-out size?
Yes. The tile insert grate requires a cut-out to fit the 115mm x 115mm square frame. Confirm the tile cutter can produce a clean square cut-out before tiling.
What does the 100mm outlet mean for my bathroom floor waste?
The outlet size needs to match your existing bathroom floor waste pipe. Confirm your existing pipe diameter before ordering the grate.
How does the tile insert design work?
The grate sits flush with the tile surface with the tile grouted over the outer frame. Confirm the tile thickness and grout depth are suitable for this insert style before installation.
Specifications
| Color | Chrome |
