MyDepot product guide

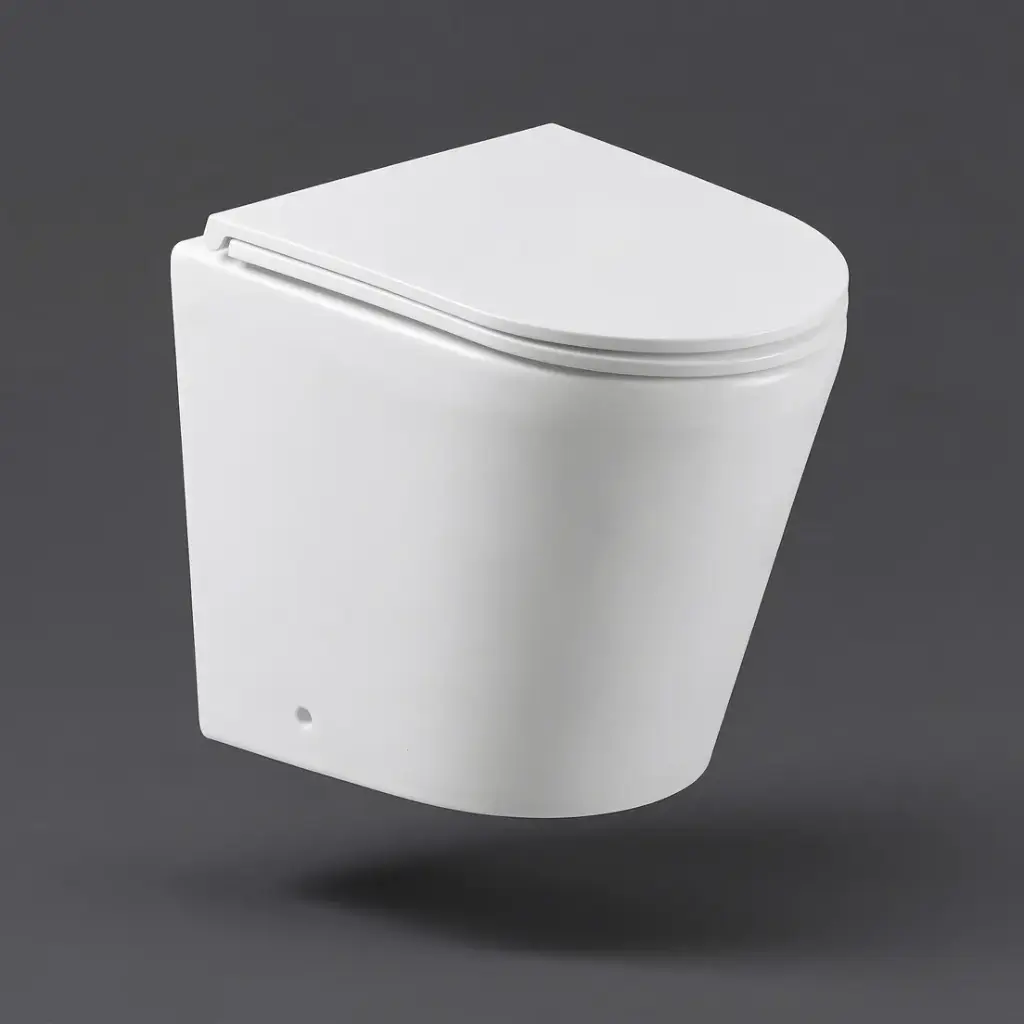

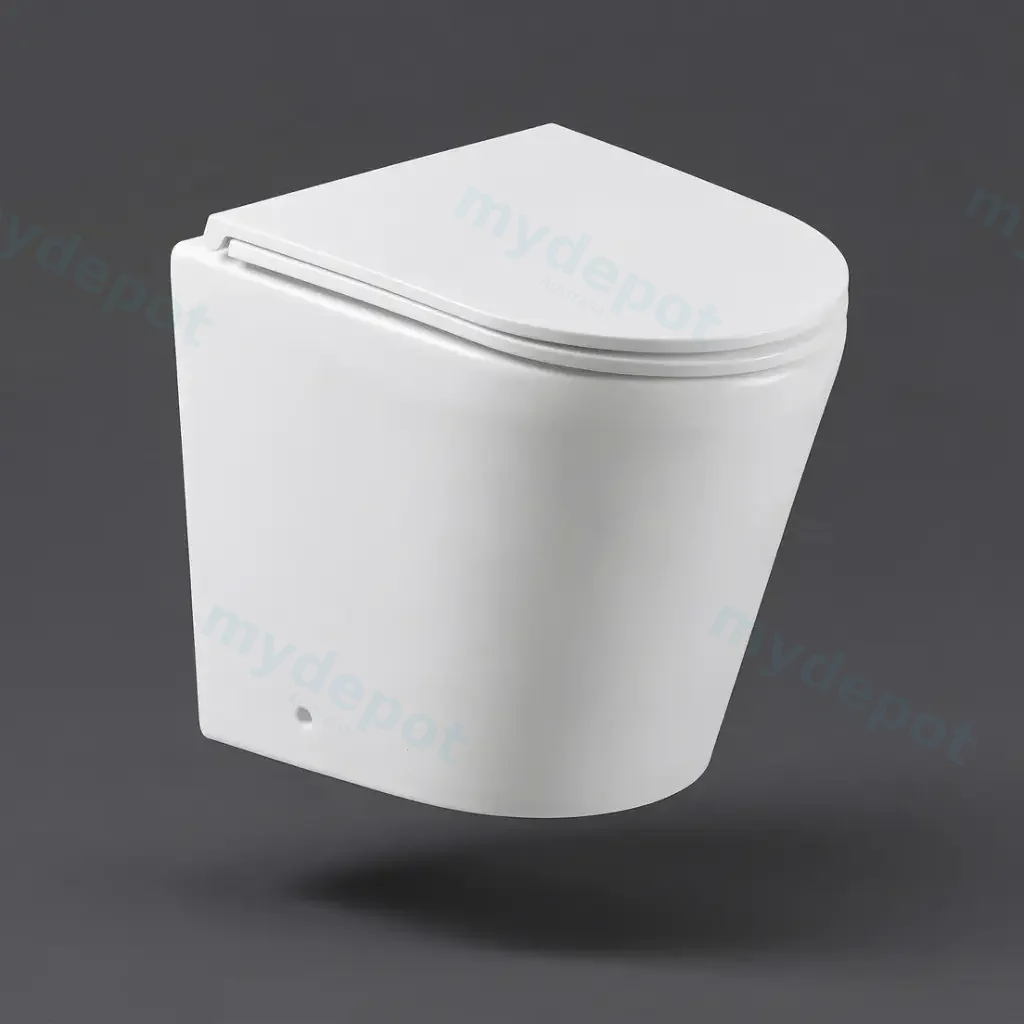

A wall faced floor pan in matte white for S-trap or P-trap connection.
A wall faced floor pan made from vitreous china in matte white finish. It features quiet flush technology and a dual-flush system rated WELS 4 Star.
What is included
| Not included | Cistern, actuator button, pan connector, trap adapter and installation parts are not included. |
|---|---|
| Best for | Standard bathroom installations requiring a floor-level pan with dual-flush quiet operation. |
Measure before you buy
- Measure the set-out from the wall to confirm S-trap or P-trap fit.
- Check the water inlet position before ordering.
- Confirm pan height of 410mm fits under any above-pan clearance.
- Verify cabinet or surround clearance for the 580mm depth.
- Use a licensed installer for final fitting.
Complete specifications
| Product type | Floor Pan |
|---|---|
| SKU | 50329 |
| Code | 50329 |

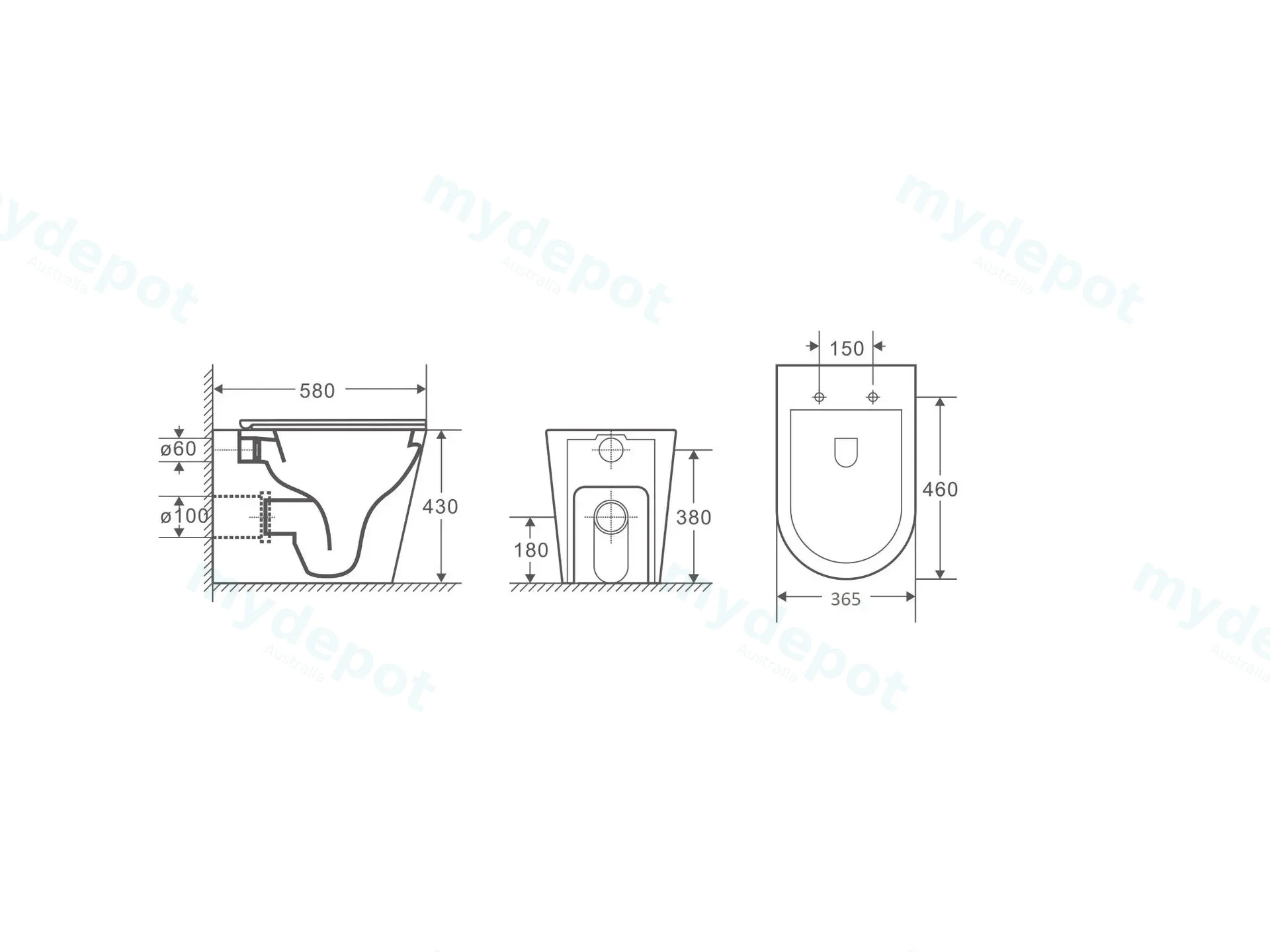

| Size | 580 x 360 x 430mm |
| Material | Vitreous China |
| Colour / finish | Matte White |
| Barcode | 50329 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Clean the vitreous china surface with a non-abrasive mild cleaner.
- Avoid acidic or harsh chemical cleaners on the glaze.
- Do not use the seat as a step or place heavy weight on it.
- Check the dual-flush mechanism periodically for smooth operation.
- Use a licensed plumber for any pan re-seating or resealing.
FAQ
Does this floor pan include the cistern?
No. The cistern is not included. Compatible in-wall cisterns are listed separately as matching accessories.
Can this pan connect to both S-trap and P-trap plumbing?
Yes. It supports S-trap set-out 95-115mm and P-trap 180mm. Confirm your plumbing configuration before ordering.
What flush volume does this pan use?
It is WELS rated 4 Star with a dual-flush of 4.5L full flush and 3L half flush.
Specifications
| Color | Matte White |
