Barcode:
41446
MyDepot product guide
A chrome tile insert shower floor grate available in lengths from 300 to 5600mm.

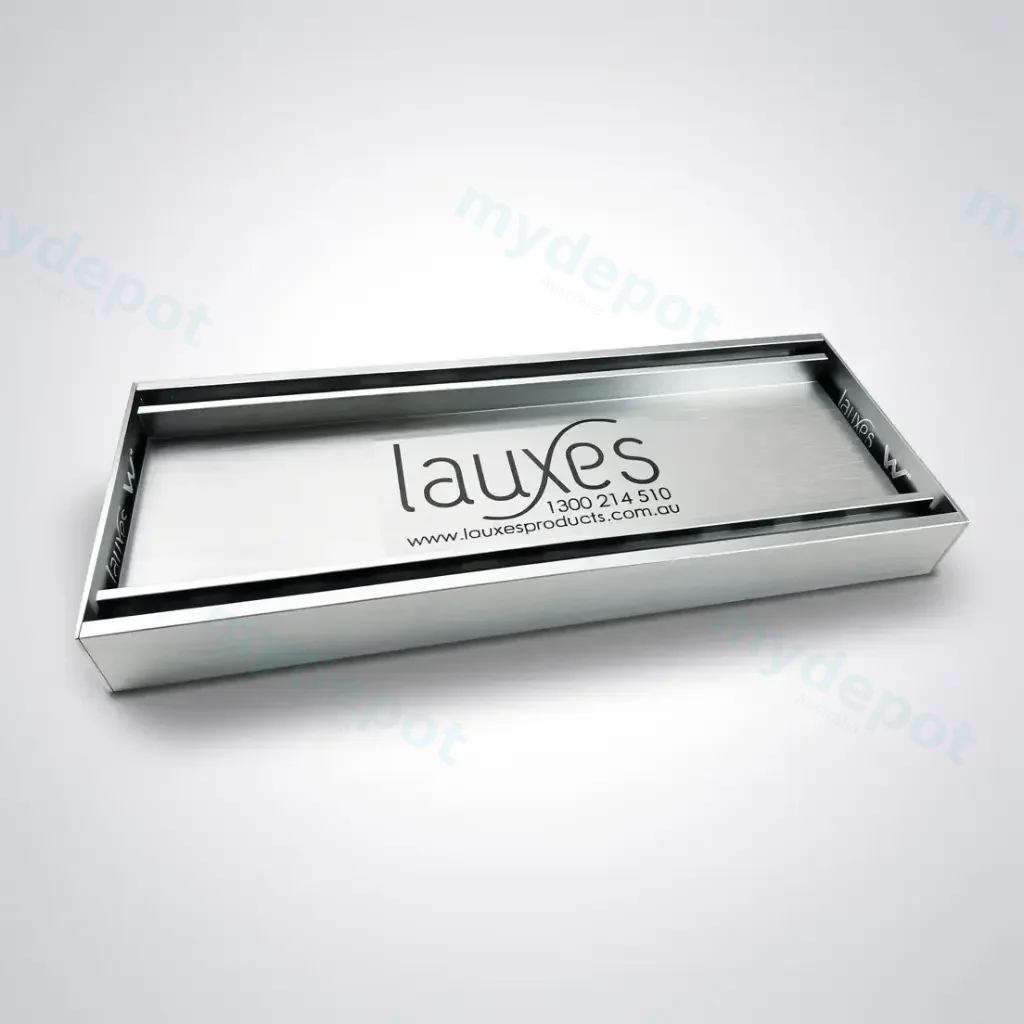

A stainless steel tile insert shower floor grate with a chrome finish, designed to sit flush with floor tiles. The grate can be cut to length and includes four waste size options to suit different plumbing configurations.
What is included
| Included | Floor grate, bottom tray, end caps, and four waste sizes: 40mm, 50mm, 72mm, and 80mm. |
|---|---|
| Not included | Tile adhesive, sealant, and installation tools are not included. |
| Best for | Indoor and outdoor wet areas where a discreet floor-level waste grate is required. |
Measure before you buy
- Check the product dimensions before purchase.
- Confirm installation clearances before final fit-off.
- Use the product page images and specifications as the measuring reference.
Complete specifications
| Product type | Tile insert shower floor grate |
|---|---|
| SKU | 41446 |
| Code | 41446 |

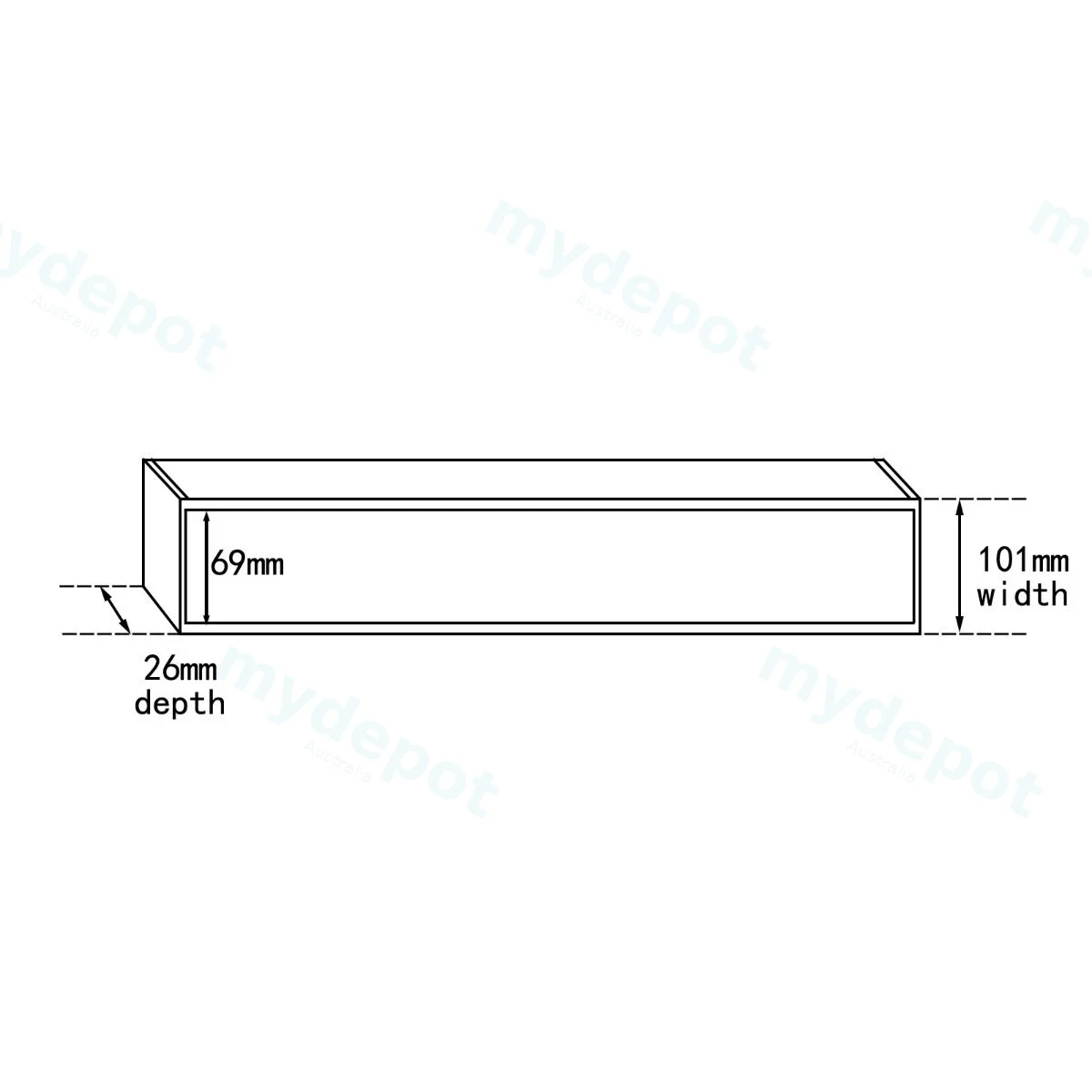

| Size | 300-5600mm L x 100W x 26H |
| Material | Stainless steel |
| Colour / finish | Chrome |
| Barcode | 41446 |
Factory-direct confidence
MyDepot focuses on practical bathroom and home products with clear specifications and direct value. The goal is simple: make the renovation decision easier, not louder.
Care and installation notes
- Clean with a soft, damp cloth.
- Avoid abrasive cleaners and harsh chemicals.
- Wipe dry after cleaning.
FAQ
What waste sizes are included?
Four waste sizes are included: 40mm, 50mm, 72mm, and 80mm. Select the size that matches your existing waste outlet.
Can the grate be cut to a custom length?
Yes. The grate can be cut to any desired length. Cut the bottom tray 3mm shorter than the desired length to allow end caps to fit, then cut the top grate 1mm shorter than the tray.
What tools are needed to cut the grate?
A compound mitre saw fitted with a multi-material cutting blade of 80 teeth or more is recommended for cutting the grate. A bimetal hole saw is suitable for drilling the waste outlet hole.
Specifications
| Color | Chrome |
